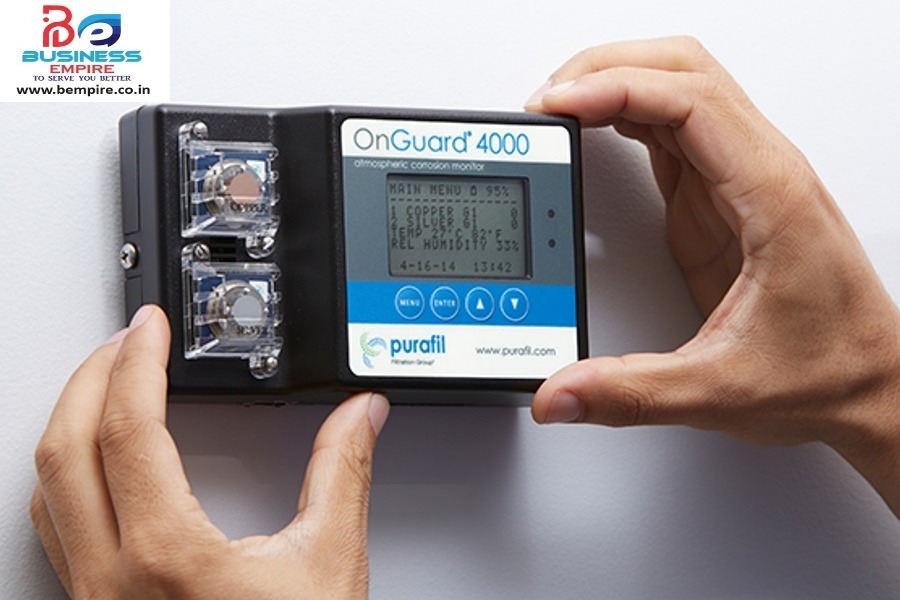

It is an active corrosion monitor designed to measure the rate of corrosion in indoor environments (e.g. control rooms, server rooms, electrical enclosures) before damage occurs.
Corrosive Air Monitoring
+2
Purafil
+2
It uses copper and silver sensors (quartz crystal microbalance sensors) to detect corrosive species in the air that deposit onto metal surfaces over time.
Purafil
+2
Purafil
+2
The device also records temperature and relative humidity to help correlate environmental conditions with corrosion.
Newgen Instruments
+3
Purafil
+3
Purafil
+3
It logs incremental and cumulative corrosion data, allowing trend analysis over time.
Purafil
+2
Purafil
+2
The readings are expressed in Angstroms (Å) of corrosion growth (thickness of deposited corrosion film).
Purafil
+3
Purafil
+3
Purafil
+3
Key Features & Specifications
Here are some of the important features & technical specs:
Feature / Spec Description / Value
Corrosive species sensors Copper & Silver plated QCM sensors
Purafil
+2
Purafil
+2
Corrosion limit / useful life of sensors Up to 4000 Angstroms (Å) of cumulative corrosion before sensor replacement.
Purafil
+3
Purafil
+3
Purafil
+3
Display / Interface LCD screen with menu / keypad interface
Purafil
+2
Purafil
+2
Connections / Output Ethernet / network connectivity for remote data access, and 4-20 mA output for integration with facility control systems (DCS)
Purafil
+2
Purafil
+2
Power / Backup It can be powered via network (PoE) or via batteries (for remote or inaccessible locations)
Purafil
+2
Purafil
+2
Accuracy & Stability Typically ±0.5 to 1 % of full span (for sensor / corrosion measurement)
Purafil
+1
Standard compliance Readings correspond to ISA Standard 71.04-2013 (“Environmental Equipment Conditions for Process Management & Control Systems”)
Purafil
+2
Purafil
+2
Maintenance / Sensor replacement After sensors accumulate ~4000 Å, they need replacement.
Purafil
+2
Purafil
+2
Typical application environments Control rooms, server rooms, motor control centers, rack rooms, electrical cabinets, etc.
